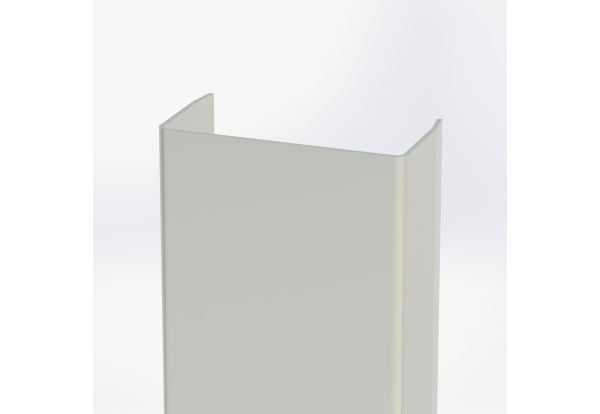

Stainless Steel Wall End Cap (Guard)

How You Get Ahead

The wall end caps (guards) are fabricated with various thicknesses from ultra heavy duty 14ga through 22ga and are available in three finishes. The 18ga is the most popular and provides a good balance of cost, weight, and corner protection. The wall end guards are accurately cut and can be purchased as just a basic channel, or with winglets, and can include mounting holes for either configuration. The products have deburred edges to save your hands and those of your customers.

Accurate bends with no canoeing: This means your wall end guards will be hugging the wall all the way up and down. Our machines provide accurate bends and fantastic consistency.

Mark-free bends: These aren't as easy to make as one might think. We use a combination of tough, removable protective film on the sheets, rounded shoulders on high precision bend dies, and if necessary, additional cloth or urethane film to ensure you never have to put up with any marks on the metal. Thanks to the consistency of the tooling, you will also not have to worry about "nicks" and/or "offsets" that results in slight differences from tooling sections along the bend.

Deburred Edges: These provide peace-of-mind that you and your crew need not worry about cut fingers and hands. Your customer will be exceedingly grateful especially the maintenance and janitorial personnel who will likely be around and/or touching the wall end guards on a regular basis. This one sounds obvious but we have encountered extremely sharp edges in hospitals, high end luxury apartments, labs, correctional facilities, etc, etc. In all these locations, sharp edges are a problem.

You Want Speed? We've got it. Your order will be shipped quickly, typically within 2-3 business days. We understand you need to get the job done, and we understand you don't want to waste time with a flaky supplier. On the off chance there is an issue, we'll contact you to let you know what's going on. There is nothing worse than waiting 2 weeks only to find an order is still 2 weeks from completion.

Shipping and Peace of Mind Typically don't belong together. No doubt you have experienced plenty of issues with small package and/or freight carriers turning your shipment in to a pile of firewood, pretzel, or scrap metal. We have a 0.001% (yes that is correct) damage rate on our freight shipments and a 0.8% damage rate on package shipments via FedEx and USPS. We hate shipping claims and want to make sure you get your product in one piece. Should a carrier choose to play catch with a shipment, toss it off a truck, or just drive over it, we'll get you a replacement out quickly, typically within 24 hours.

Wall End Guard (Cap) Finishes

#4 Brushed Satin Finish: The #4 brushed satin finish is by far the most popular option you'll encounter when using wall protectors. Various names for the same finish are satin, brushed, #4, or nickel finish. and it offers a great looking product that will tend to look good even after being abused for years. The finish is common in restaurants, industrial facilities, hospitals, offices, correctional institutions, commercial facilities, and anywhere tough wall end protection is required.

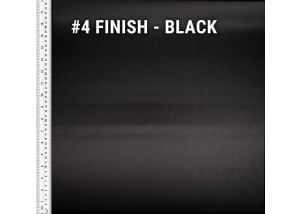

#4 Brushed Black Finish: The black #4 finish is a newer, high end option for the ultimate in protection and luxury. Whether you just want an accent piece or are building a high-rise in the heart of a major city, the black wall end guards will provide appealing corner protection that is guaranteed to impress. We will be introducing a PVD finish that is extremely tough and excellent for high wear area.

Random Swirl Finish: For applications where scratching is going to be common, or where you want a unique and attractive finish, the random swirl finish offers a great option. The circular scratches are great for cleaning as any scratches created by aggressive cleaning agents, applicators, Brillo pads, etc won't be an issue.

Wall Cap Sizes

Lengths: Wall End Guards are available in standard lengths which are 48", 60", 96", and 120" and you can also specify any custom length up to 120". Tolerances re typically +/- 1/32" and angle tolerances are typically +/- 0.5 degrees.

Widths and Leg Lengths: Our Wall End Caps are available with 1-1/2" legs and various widths for common wall assemblies. If you need a more customized product, we can certainly help. For example, if you need a 1" x 4" x 1" cap, please let us know as that's absolutely no problem to fabricate, and will not take any longer than a standard wall end cap.
